JS-01

Single axis, analog output, full size, Hall effect sensors

Download data sheet     pdf-icon

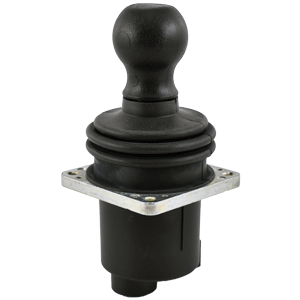

Stock Grip

Mounted on The JS-01

JS-01 with stock grip removed

Any of our “S”, “X”, “P”, “K” or “L” grips can be added in place.
The JS-01 is a single axis spring return to center full size joystick. It uses non contacting Hall effect sensors to give an expected life of more than 4 million cycles. It has an IP rating of 65 above the panel.

The standard output is 0.5V to 2.5V (center) to 4.5V DC. High current switched outputs and CAN (CanOpen or J1939) are available as options. The joystick housing incorporates a 6 pin Deutsch connector for the electrical connection.

The JS-01 comes stock with a plain knob, but any of our “S”, “X”, “P”, “K” or “L” grips can be added.

Integrated control electronics available.

Height100 mm above the panel
Length50 mm
Width95 mm
Angle+/- 37 Degrees
Life> 1 Million Cycles
ResistanceMin 9000 Ohms, Max 11000 Ohms, Typicall 10000 Ohms
Power Rating0.25 Watts
Center Tap VoltageMin 0.48, Max 0.54, Typically 0.5 of supply voltage
Operating Temp.Min -25 °C, Max 70 °C
IP RatingIP65 above panel

Features

Low parts count
EMI/RFI protected
Factory calibrated output
Low power consumption

Hall Effect Sensors

detect a magnetic field, and output a variable voltage based on position. Long life, extremely accurate.
*

Single Axis

for either LEFT RIGHT or FORWARD BACK operation

Image Gallery

View an image gallery of possible configurations for the JS-01 joystick.
